Features:
* The DECbridge 90 filters 29,694 pps, and forwards
14,847 pps, allowing for quick access to local and remote traffic. It
supports an unlimited
number of nodes on the backbone side, and up to 200
addresses on the work group side.
* The DECbridge 90 can also filter up to 16
protocols in one or both directions. Work group
communications stay local, with
forwarding
occurring only when packets need to be sent
out on the network. Network transfer rates run
at maximum Ethernet speed (10
Mb/s), enabling
the DECbridge 90 to take advantage of the full
Ethernet bandwidth.
* Operation is truly plug-and-play.
The DECbridge 90
automatically
configures itself for operation with any IEEE 802.1D
spanning tree compliant bridge. It also automatically
learns network
addresses on the backbone and in the work group for
overall network integrity.
* Connections to your DECbridge 90 are quick and
easy. Backbone connections are made using ThinWire
Ethernet or AUI
transceiver cable.
* The AUI port supports various transmission

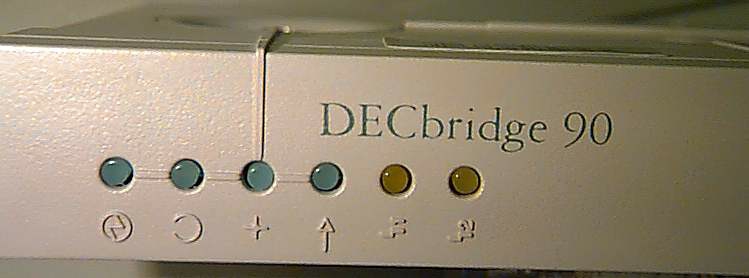

media, such as coaxial and fiber optic cables. LED
indicators show the status
of backbone and
work group activity and integrity, as well as
configuration and power status.
* Management of the DECbridge 90 can be accomplished
using clearVISN or a simple user interface that is
accessible from any
DECnet node
supporting the MOP/Console Carrier protocol. The
security of management commands is ensured through
a password system.

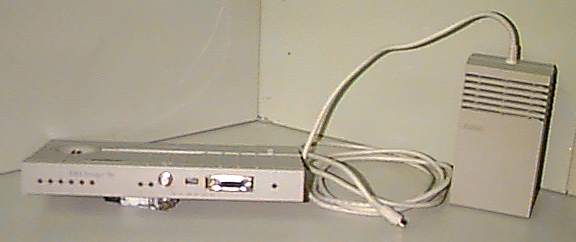

* The DECbridge 90 can be used as a standalone,
plugged into the DIGITAL MultiStack System, or the
DEChub 90 chassis. It
provides a choice
of backbone connections, either ThinWire coax or
15-pin AUI, and a ThinWire coax connector for work
group connections.
Highlights:
Forwarding Rate ...................29,694 pps
Filtering Rate ....................14,847 pps
Number of Backbone Ports ..........1 AUI or ThinWire (Switch-selectable)
Types of Ports ....................15-pin AUI and BNC
Work Group ........................1 ThinWire (BNC)
Number of Addresses ..............8000 Backbone Side, and 200 Work Group Side
Types of Filtering:
Destination Address ..............Yes
Protocol and Number ..............Yes
SNMP Management ..................Yes
$300
